About the product
- ATmega32U4 microcontroller-The Pro Micro is similar to the Pro Mini except with an ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on-board and do away with bulky external USB interface.
- Multi-channels-This tiny little board does all of the neat tricks that you're familiar with: 9 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere.

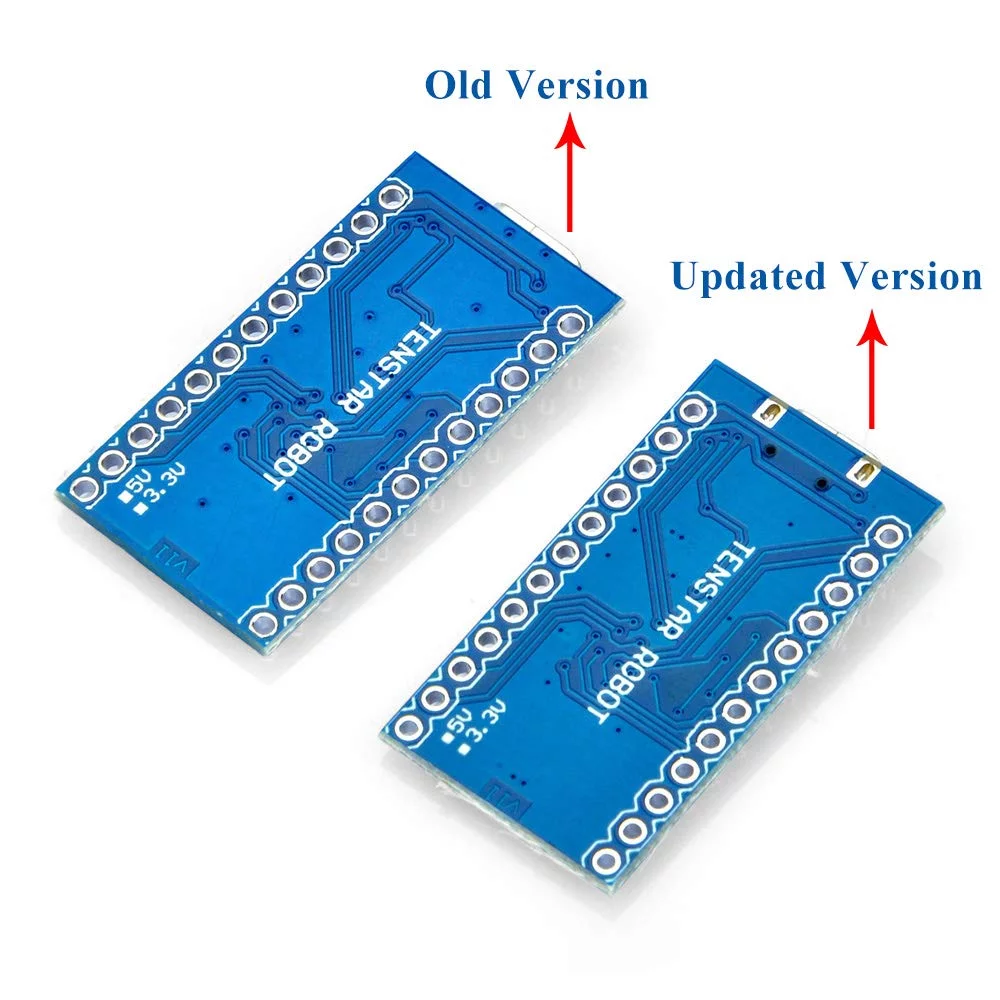

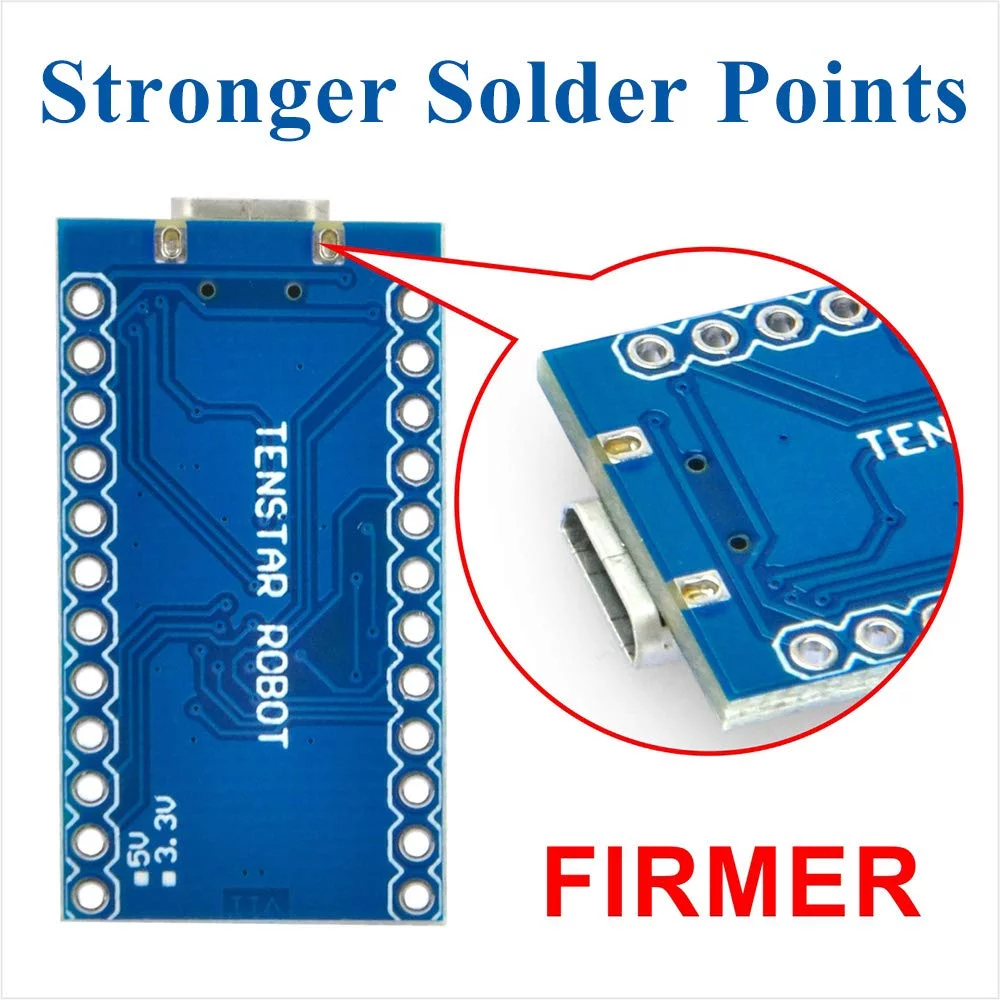

- USB Port Reinforced-This latest revision reinforced the USB port and make it more stronger solder points.
- Voltage regulator-There is a voltage regulator on board so it can accept voltage up to 9V DC.The maximum voltage allowed on the RAW pin is 9V, 6-7V input recommended. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.

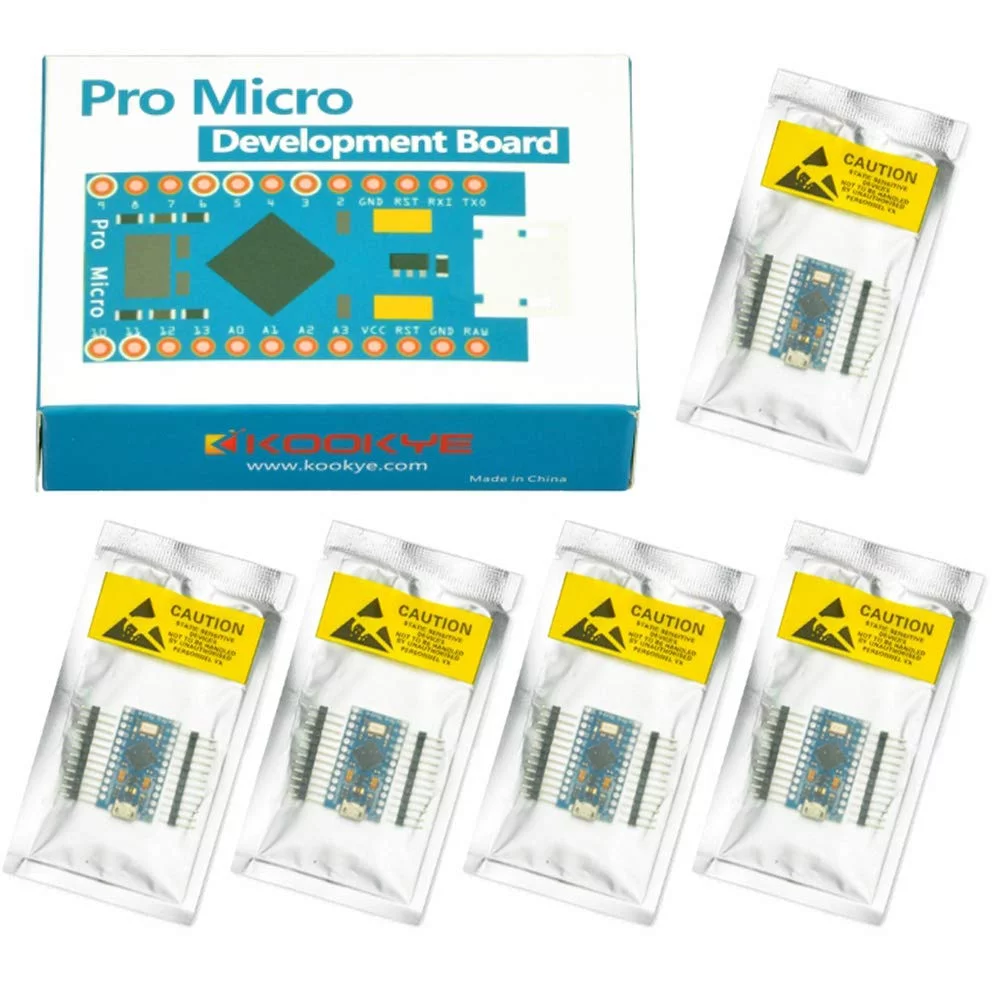

- Anti-ESD PackageThe boards came in a box package with a pinout diagram printed on, each in their own anti-ESD(Electronic Static Discharge) bag with 3 rows of header pins.
