About the product

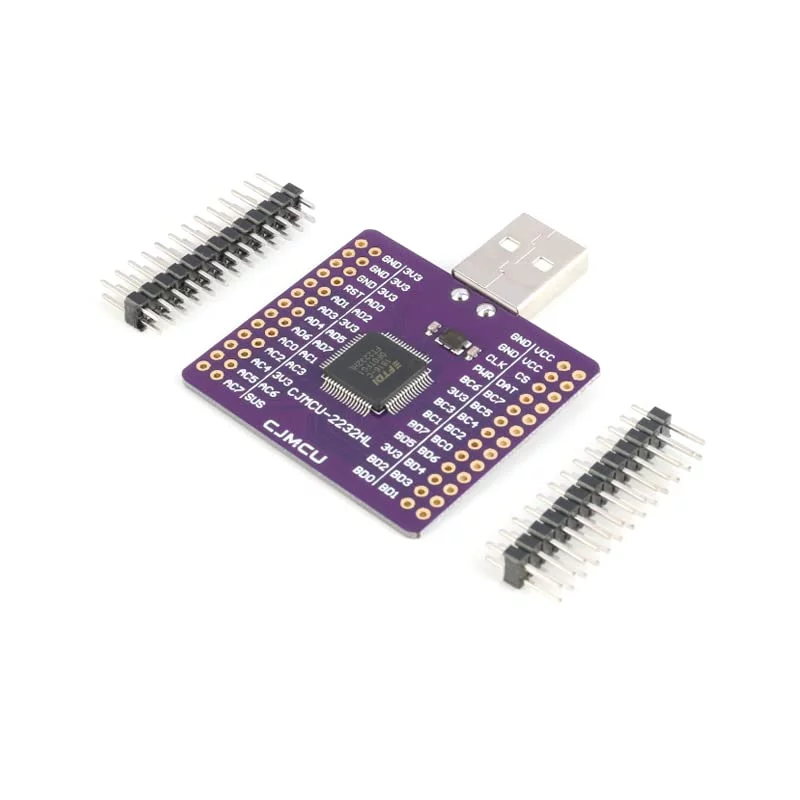

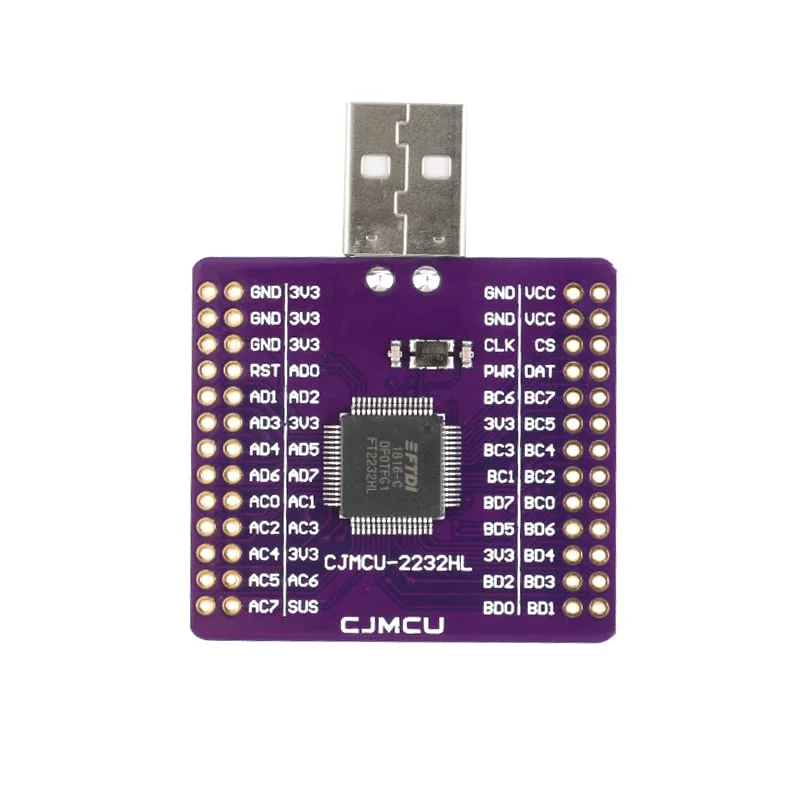

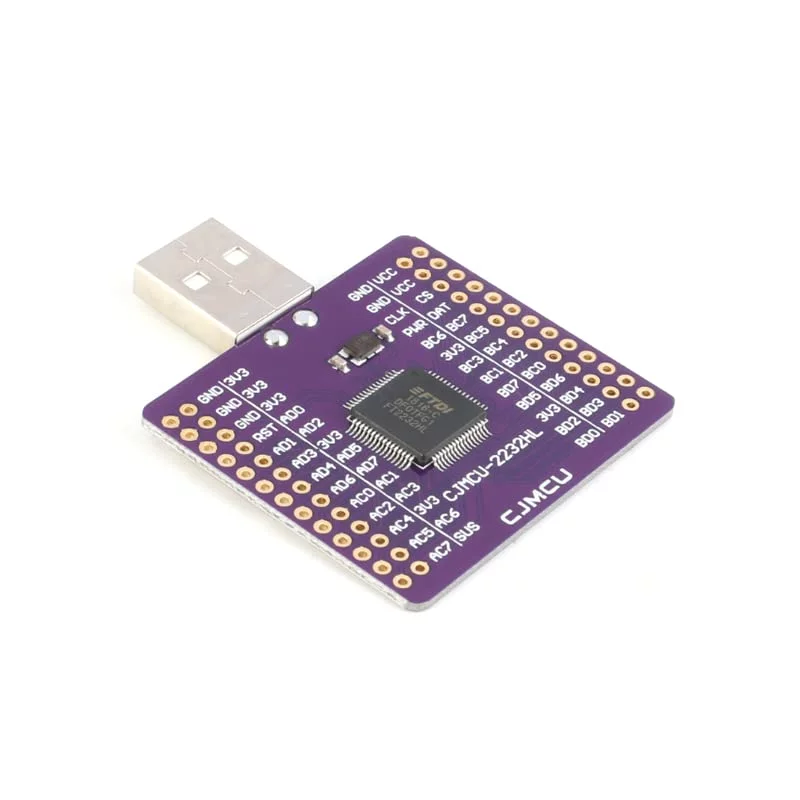

- The FT2232H USB to Serial Adapter Single chip USB to dual serial / parallel ports with a variety of configurations, Entire USB protocol handled on the chip. No USB specific firmware programming required.
- USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
- Dual Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design, Dual independent UART or FIFO or MPSSE ports.
- Independent Baud rate generators, RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter), USB to parallel FIFO transfer data rate up to 8 Mbyte/Sec.
- Single channel synchronous FIFO mode for transfers upto 40 Mbytes/Sec, CPU-style FIFO interface mode simplifies CPU interface design, MCU host bus emulation mode configuration option, Fast Opto-Isolated serial interface option.
