About the product

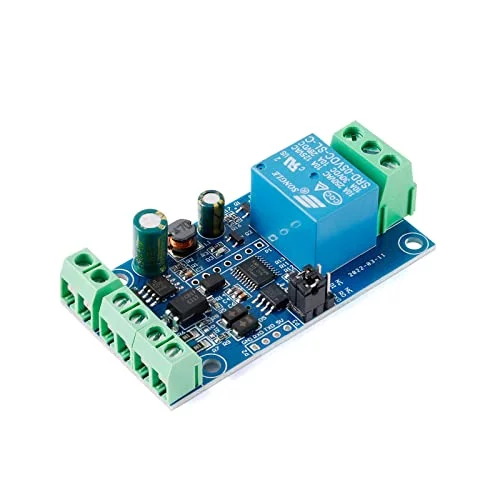

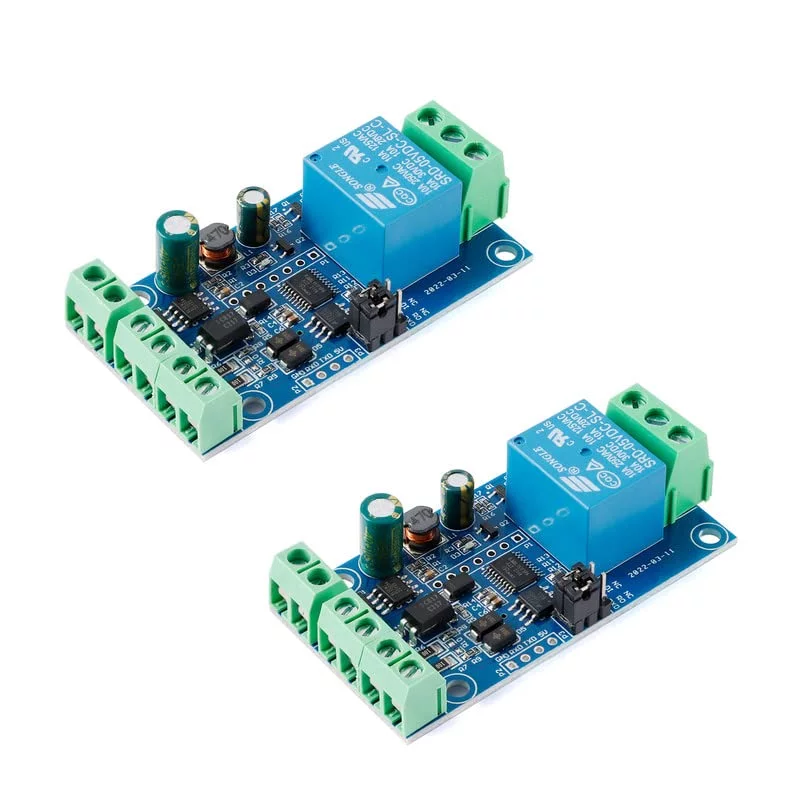

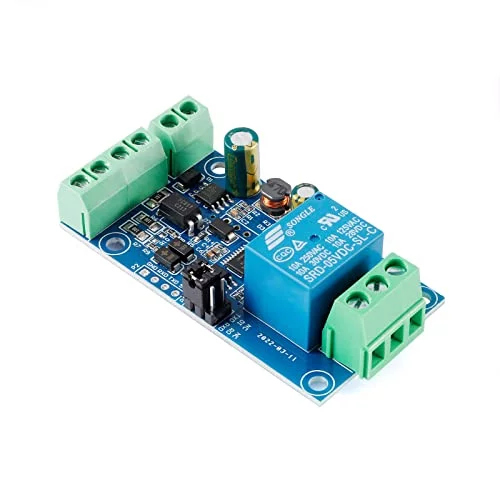

- On-board mature and stable 8bit MCU and MAX485 level conversion chips
- Output signal: relay switch signal, supports manual, flash-off and flash-off modes, the delay base of flash-off/flash-off is 0.1S, and the maximum flash-off/flash-off time can be set to be 0xFFFF * 0.1S = 6553.5S
- Onboard 1 Channel 5V,10A/250V AC 10A/30V DC relay, which can be continuously closed for 100,000 times, with diode laxative protection, short response time
- Communication protocol: supports standard Modbus RTU protocol, communication interface: supports RS485/TTL UART interface, communication baud rate: 4800/9600/19200, default 9600bps, supports power failure storage
- Optocoupler input signal range: DC3.3-30V (this input cannot be used for relay control); Power supply voltage: DC7-24V, supports DC seat/5.08mm terminal power supply, with input anti-reverse connection protection
