About the product

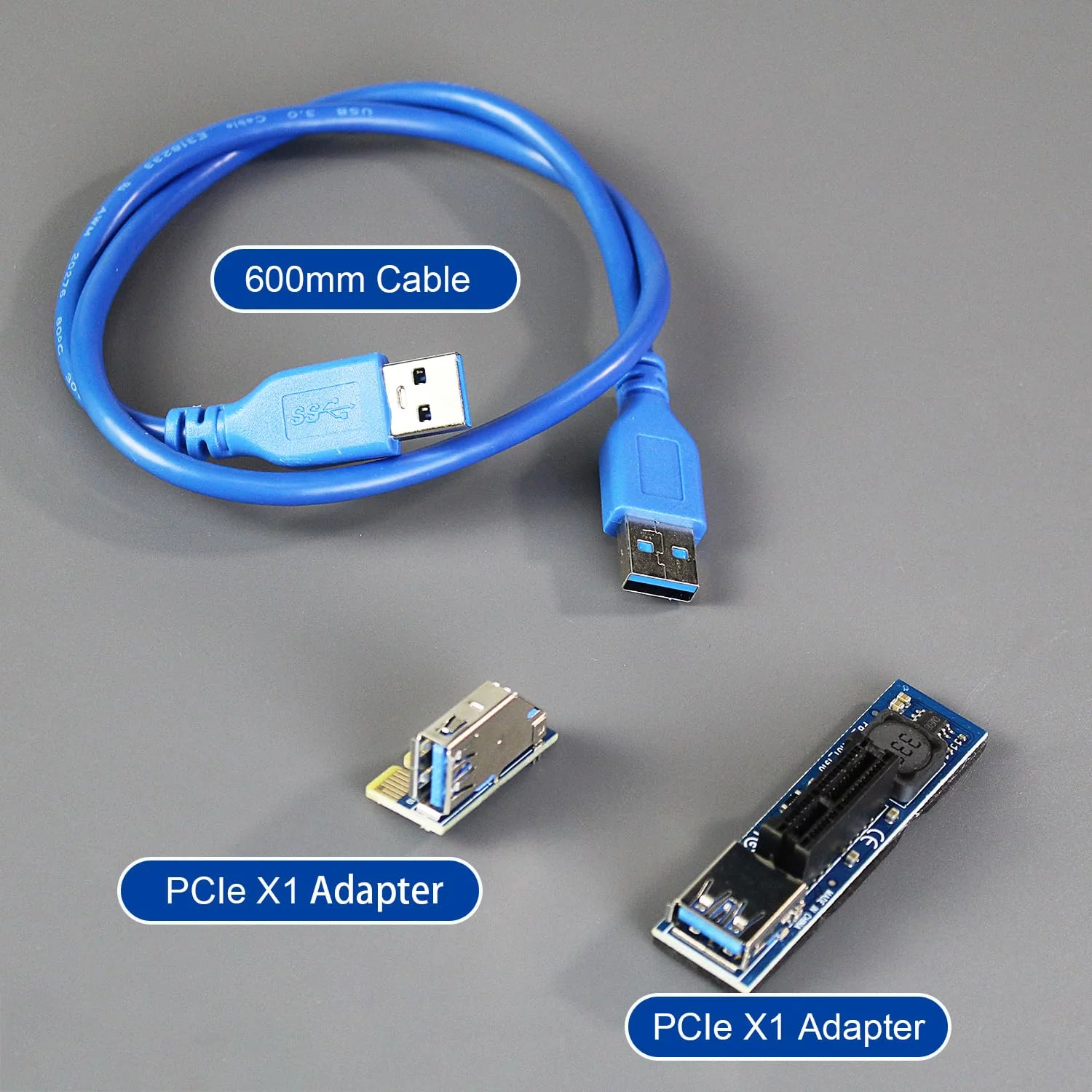

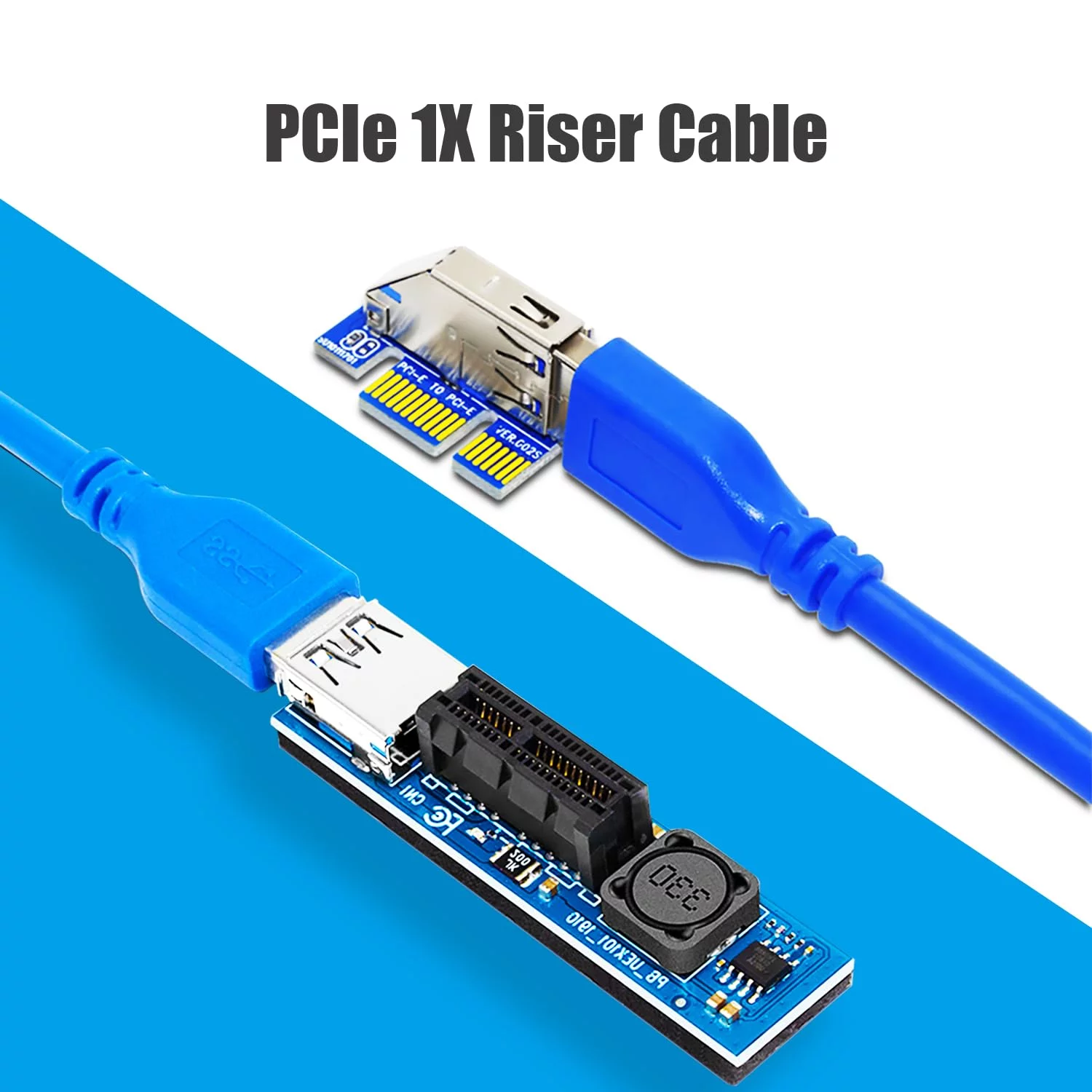

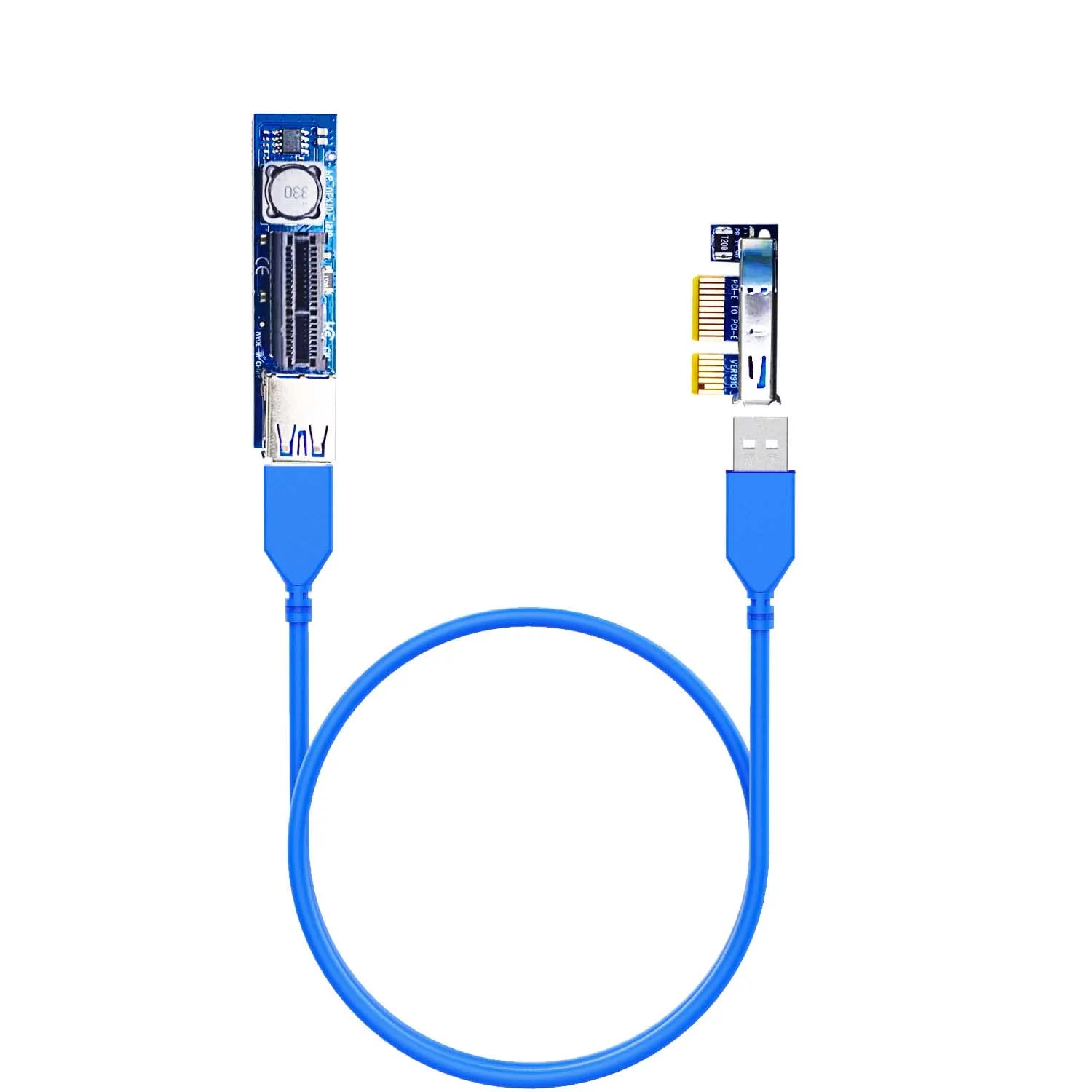

- This PCIe X1 extension cable extends the PCIe X1 lane up to 23.6inch away, so your PCIe X1 card can be installed at any available place of the PC chassis
- Almost all oversized GPUs will cover the adjacent PCIe X1 slot. If you do not want to waste this blocked PCIe X1 slot, this PCIe X1 extension cable will make it accessible again.
- Though limited space below the GPU, the low-profile and compact design PCIe X1 extension cable only needs about 6mm space for installation
- Work with all PC Peripheral PCIe X1 Adapters, such as PCIe Wifi Card, M.2 PCIe X1 Card, Firewire Card, USB PCIe Card, Sound Card, etc.
- PCIe 3.0 X1 ( about 1000 MB/s) speed bandwidth is guaranteed, just like onboard slots. To be noted if your PCIe X1 slot is PCIe 2.0 X1( about 500MB/s) technical specification, the speed bandwidth will be also PCIe 2.0 X1
- To be noted: The maximum speed of the WiFi 6E wireless card is 5400Mb/s=675MB/s, so this PCIe 3.0 X1 ( about 1000MB/s) speed cable will not limit WiFi 6E speed. But for M.2 PCIe 3.0 X4 SSD, the speed will downgrade to PCIe 3.0 X1 speed.
- Operating Voltage: 12 Voltage; Output Power: 30W at max
- If after installation, the computer freezes or blue screen. Please re-plug the PCIe X1 extension cable and make sure all devices are well secured. You may need to reinstall the driver for the PC Peripheral PCIe X1 adapters.
- If other PCIe slots cannot be used after using this PCIe X1 extension cable, it may be caused by sharing PCIe Bus between these PCIe lanes. Please check the motherboard technical specification for PCIe Bus Allocation
- Easy installation and no extra driver. Plug and Play, and compatible with Windows/Mac OS/Linux/NAS
