About the product

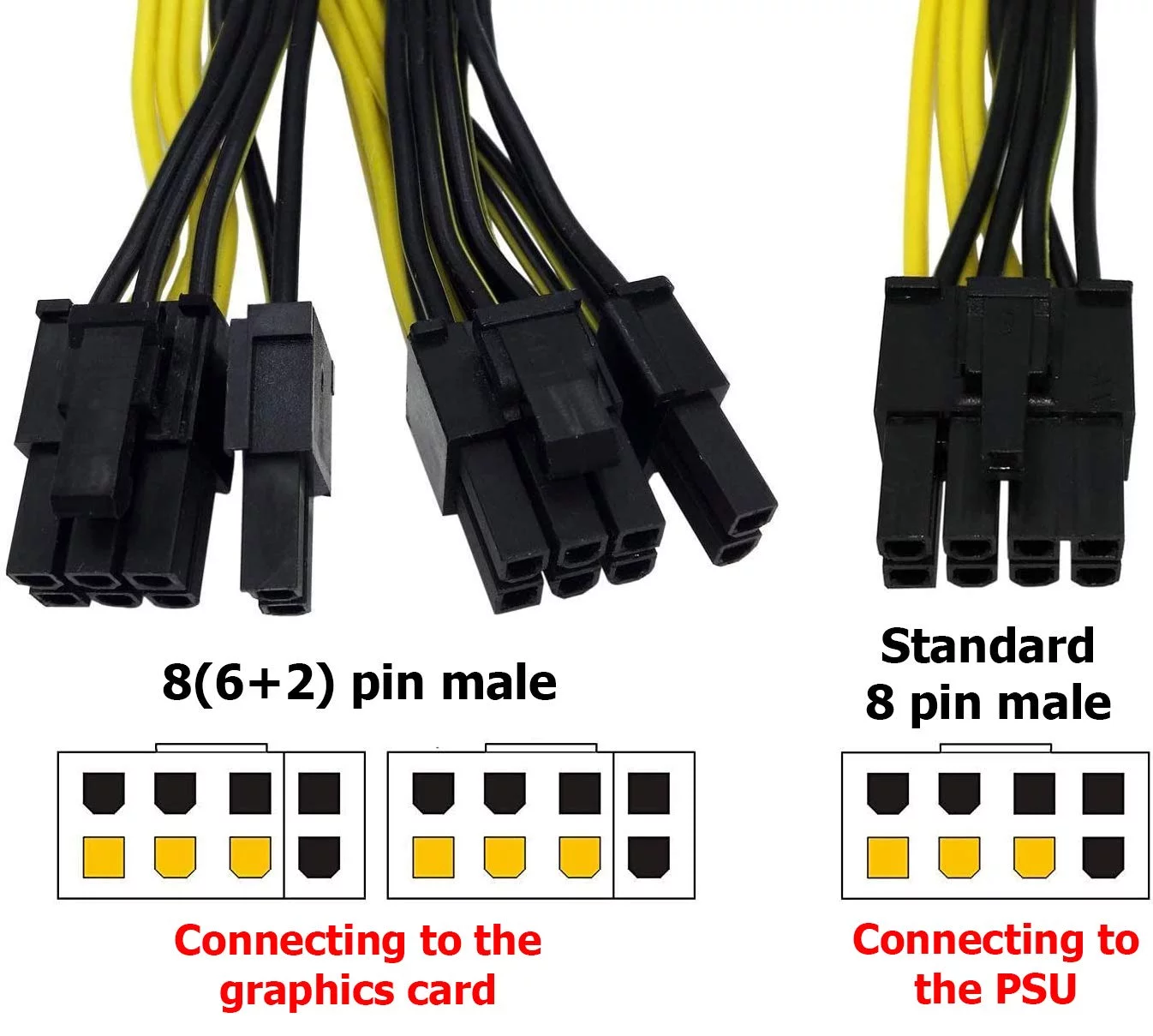

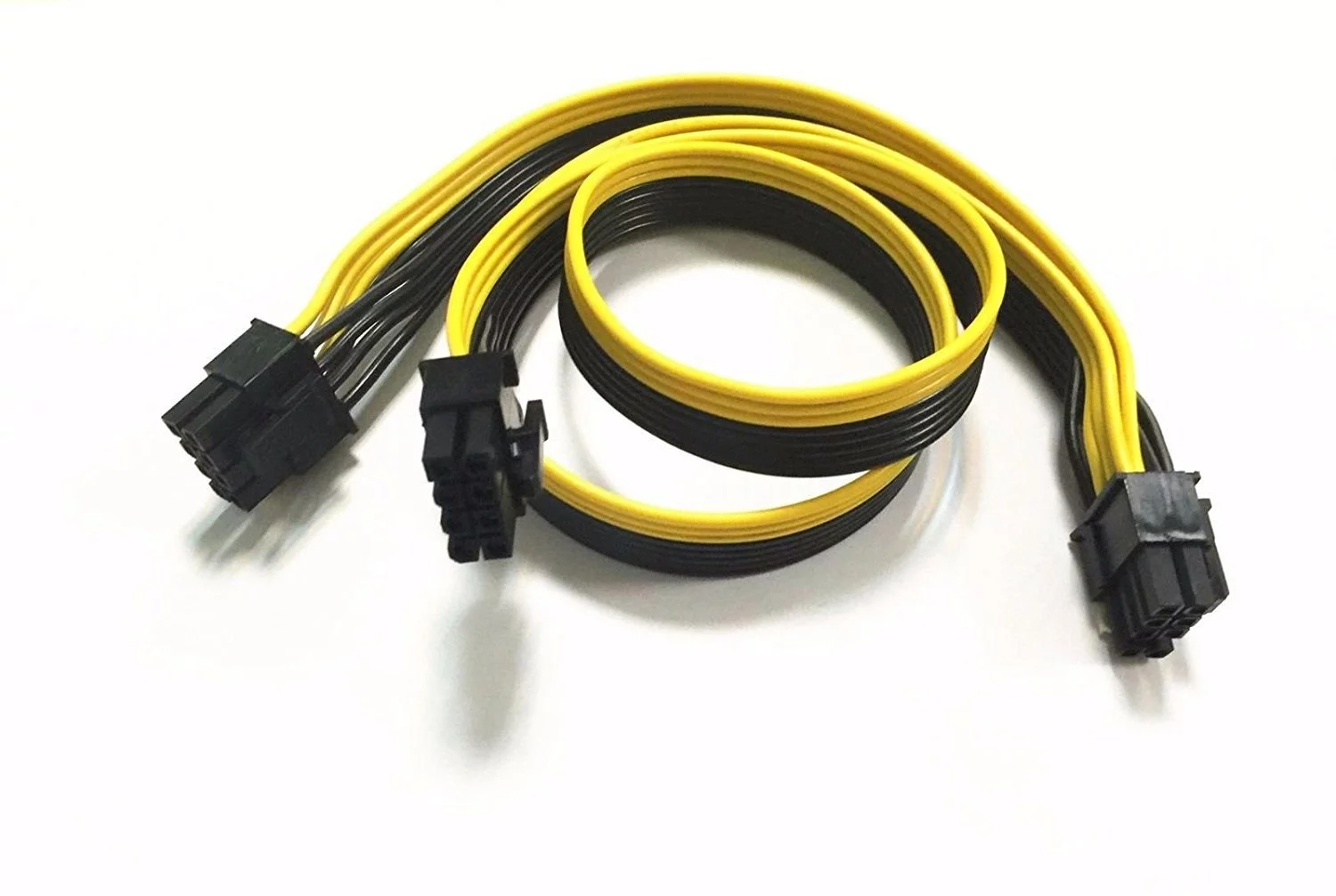

- Connectors A- 8 Pin GPU male. Connector B - 2x 8-pin (6+2pin) male : Please Note that the two connectors cannot be used alternately;

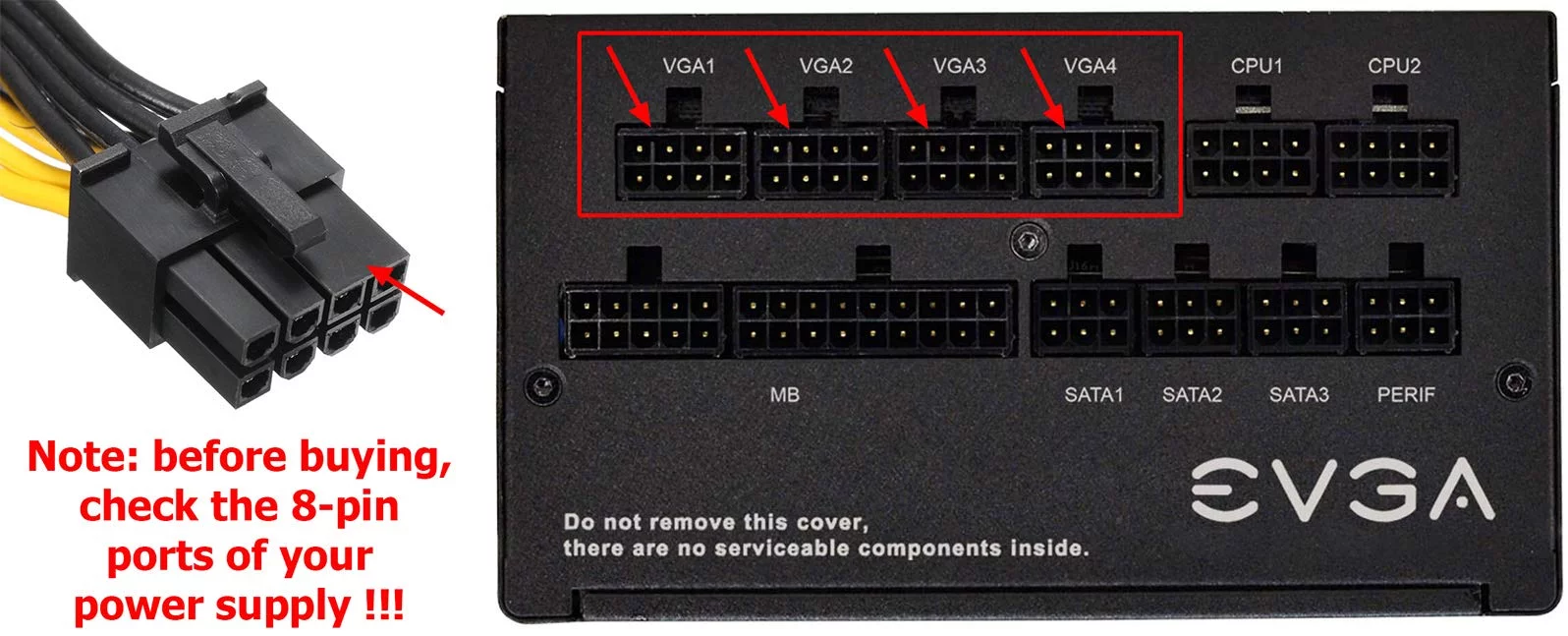

- GPU 8 pin male end to connect to the power connector of the power supply and two 8 pin(6+2) male ends to plug into the video graphics card;Compatible ONLY with Silverstone, EVGA 1600T2/1000T2/850T2/750T2 1600P2/1200P2/1000P2/850P2/750P2/650P2 1600G2/1300G2/1000G2/850G2/750G2/650G2/550G2 1000G3/850G3/750G3/650G3/550G3 NEX650G/750G 650GS/550GS,Thermaltake and COUGAR power supply with PCI-e 8 pin port (GPU) - not PCIe 6+2 port , not CPU port (as shown in product photo 2 ,3 and 4) !!!
- NOTE: this cable is NOT compatible with EVGA (1000PS, 850GS, 1050GS) ,Thermaltake smart series ,Seasonic and Corsair power supply;
- Compatible with 6-pin & 8-pin graphics cards from popular manufacturers from ASUS,ASRock,Radeon,Sapphire,EVGA and Gigabyte. NOTE - The 8 pin (6+2) ends could be used as 6 pin or 8 pin end by sliding on/off the 2 pin !!!
- Length:(Approx) 25 + 10 inches,Gauge: standard 18AWG - UL1007 ; ribbon cable.NOTE: This cable is only for the brand and model as listed. In order to avoid any compatible problems, please carefully check your PSU's brand, model and modular ports before placing order or contact us if you are not sure about it.
- !!! 8 pin cable for CORSAIR - ASIN B086Q3TJ84 ; B09J3322BQ !!!
