About the product

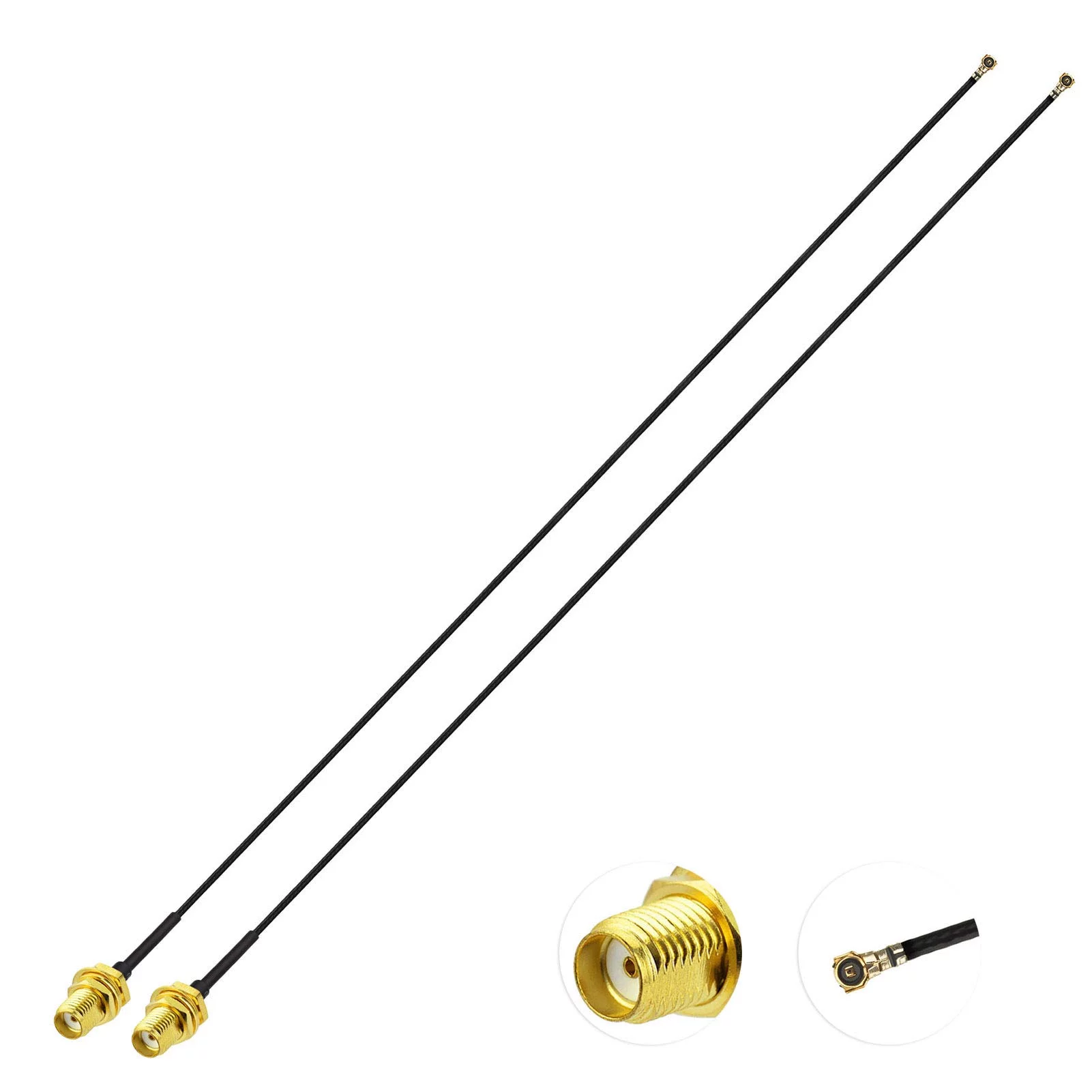

- Type: U.FL to SMA Female Pigtail Extension Cable
- 12" low loss cable give you the flexibility you need.
- can be used for 802.11ax WiFi Card 2400 bps 5GHz and 574 Mbps 2.4GHz Wireless Module ect.small devices, space saving.

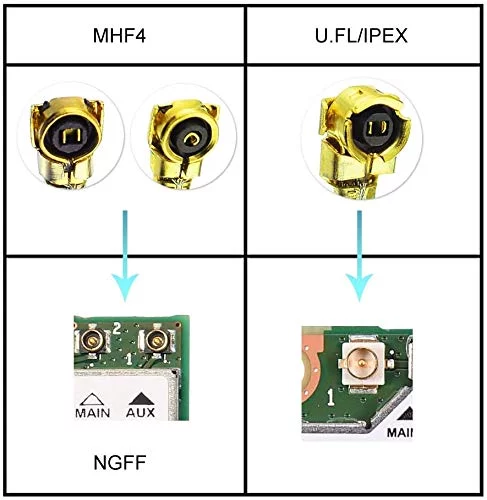

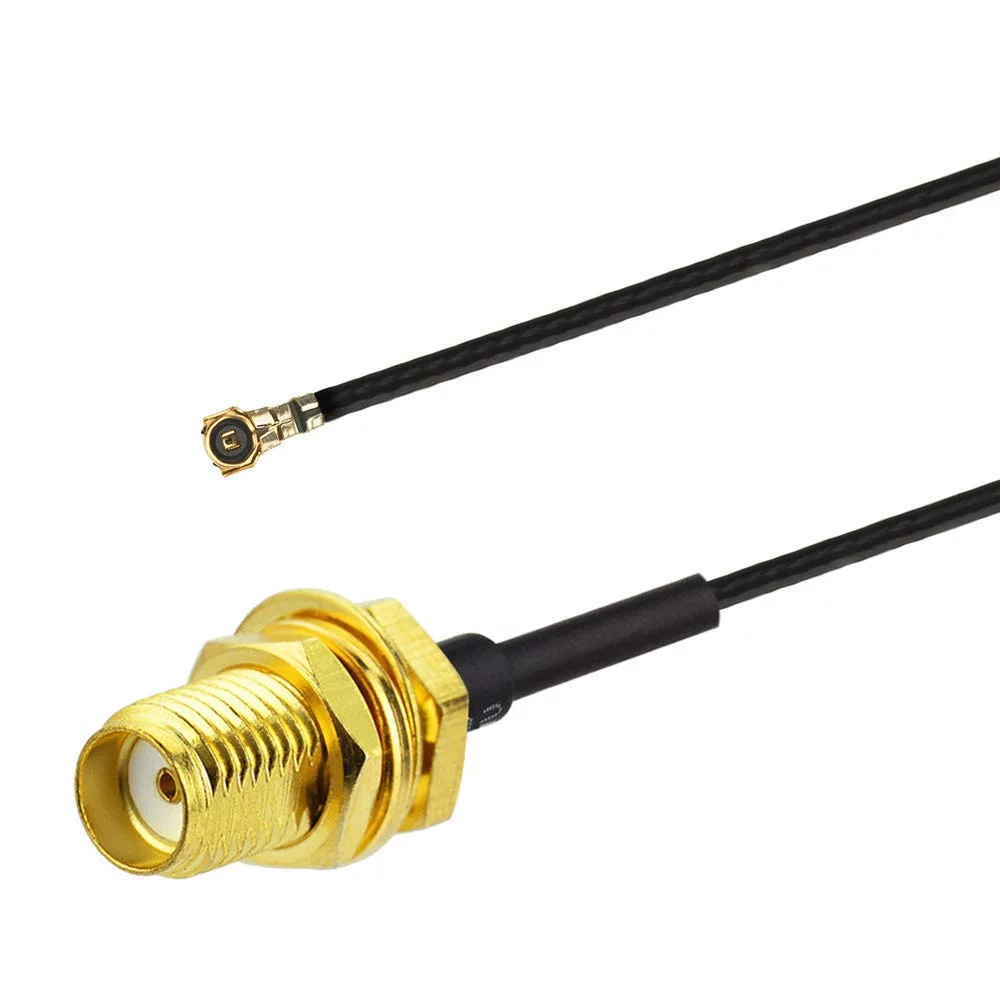

- Connector 1?SMA Bulkhead Jack; Connector 2?U.FL IPEX IPX I-PEX IPEX MHF4 Right Angle Jack .Impedance: 50 Ohm. Metall: copper
- Cable Type:Low Loss 0.81mm mini-coaxial cable. length: 30cm 12". This is a very thin and flexible cable, with a black jacket. When connecting U.FL connector to a jack on a miniPCI card or board, often the tight space requires the use of 0.81mm cable, because it is very thin and flexible.
- This ufl to sma pigtail cable is compliant for all types of wireless antennas module, including wireless / WiFi networks, mini pcie wifi card,lora antenna, Mobile phones, WLAN, PDA, GPS, electronic measuring instrument, Mini PCI, BlueTooth, ZigBee 900MHz, 2.4GHz & 5GHz applications, as well as any other frequency between 0 and 18GHz.
- Package List: 2 x ufl to sma Cable assembly. If you unfortunately get a defective one, please contact our customer support.
