About the product

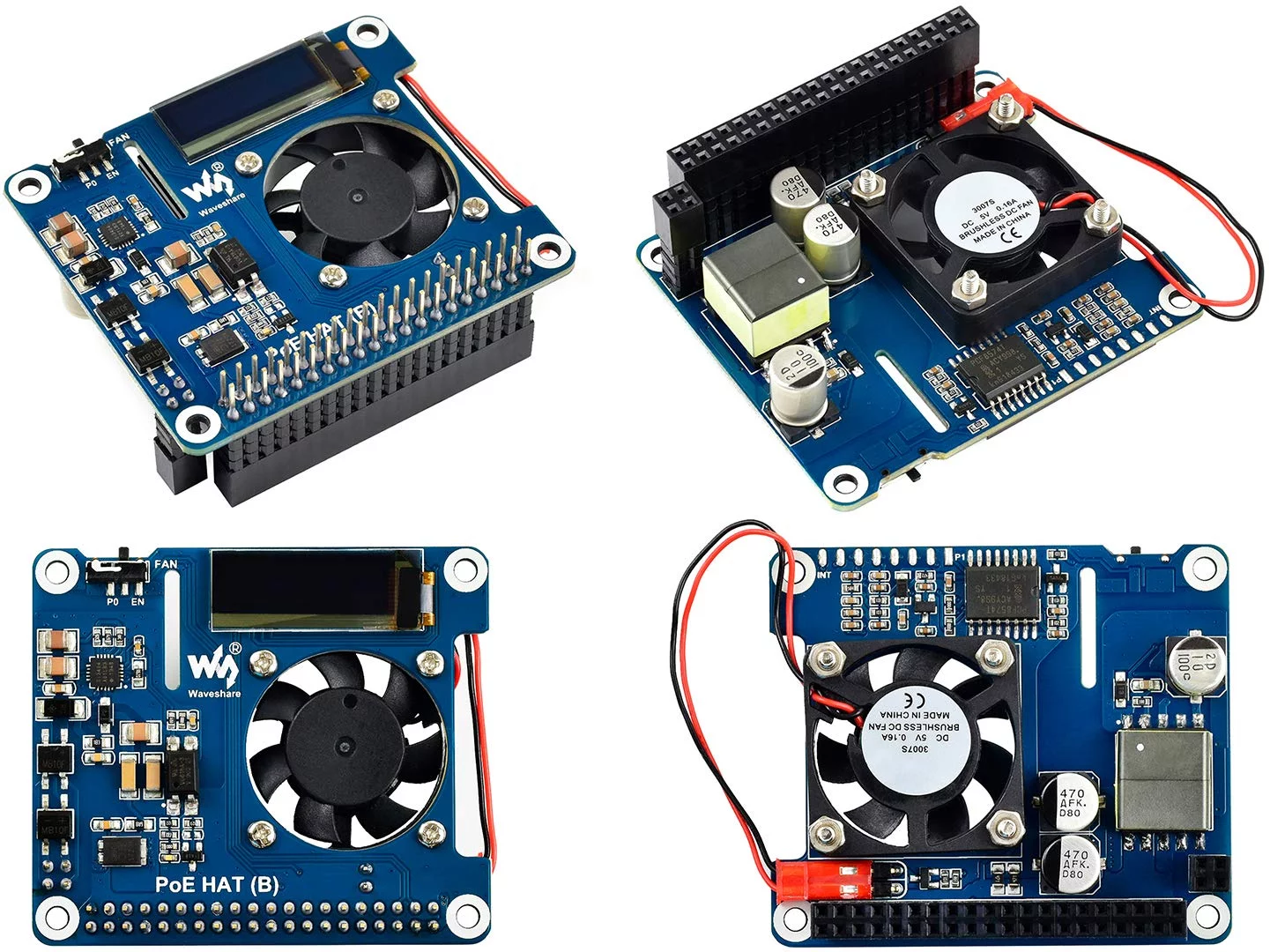

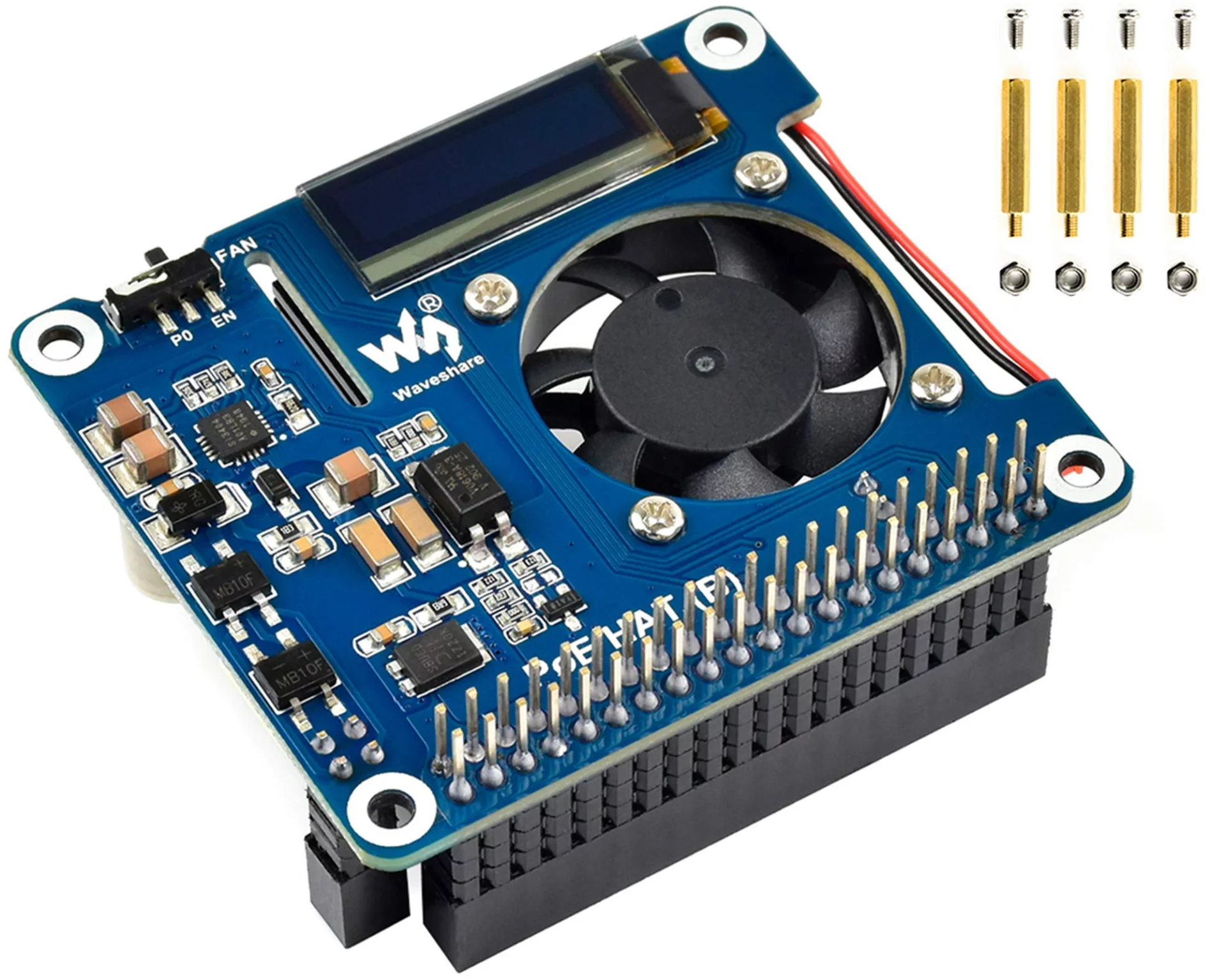

- POE HAT (B) for Raspberry Pi 4B/3B+,Power Over Ethernet HAT,Support 802.3af PoE Network,802.3af Power-Sourcing Equipment Required
- Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins

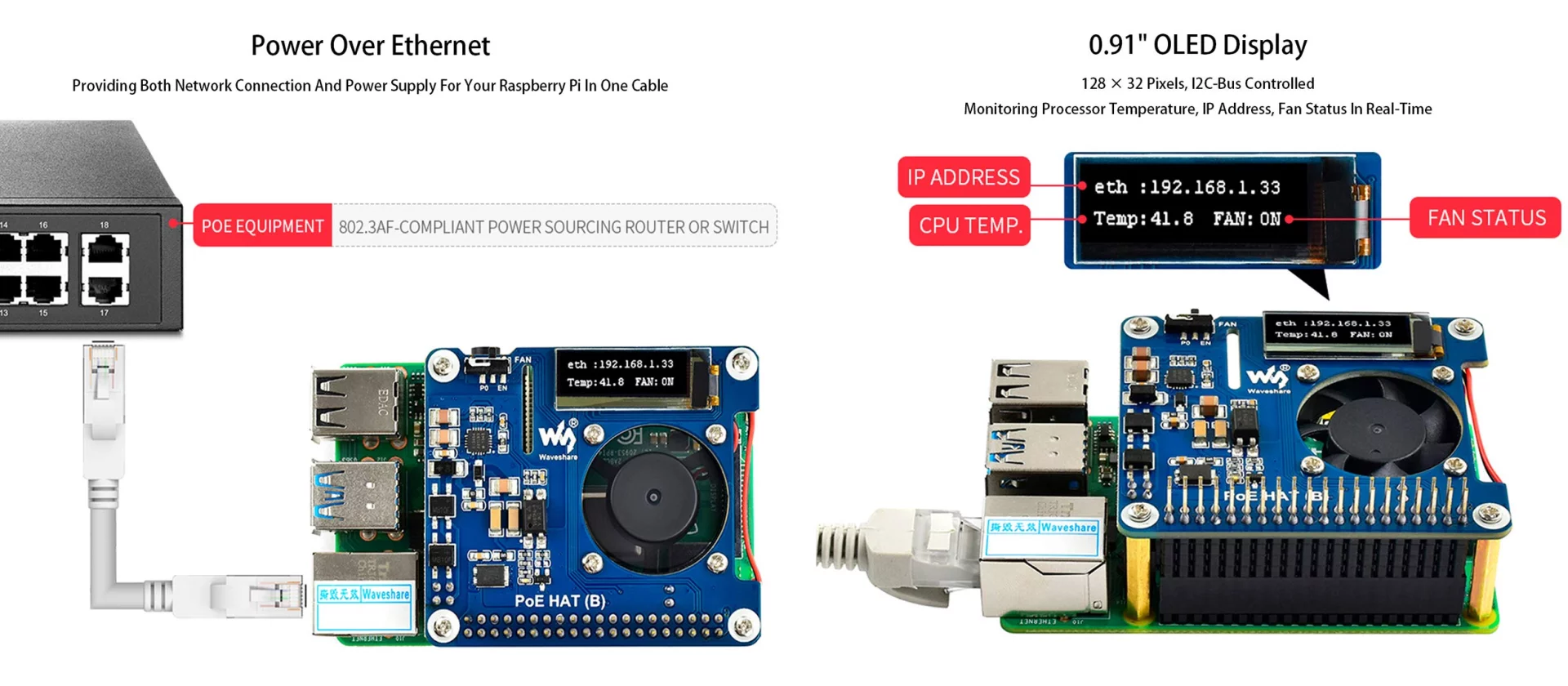

- 0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-time; Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
- PoE Power input: 37V ~ 57V DC in . PoE Power output: 5V 2.5A DC out. Network standard: 802.3af PoE. Dimensions: 56.5mm x 65mm. OLED size: 0.91inch. OLED pixels: 128x32. OLED driver: 1306. OLED display color: White.
