About the product

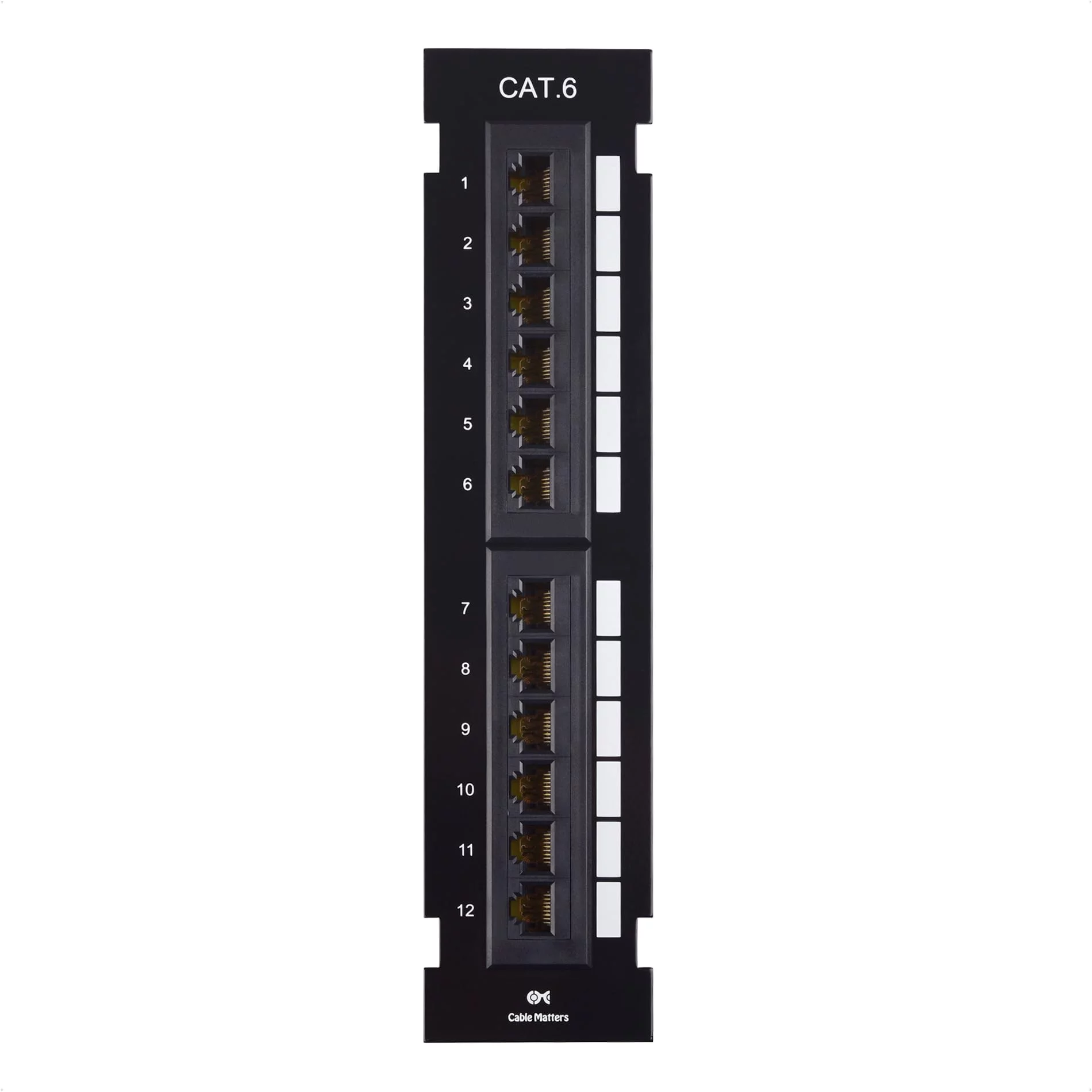

- Mini 12-port patch panel supports unshielded (UTP) 22 to 26 AWG solid or stranded cables with 180 degree oriented RJ45 jacks; Compact 10 x 2.25 inch footprint is ideal for installing in tight spaces in a network closet or under a stairwell; Wall mount the panel with the included snap-on 89D brackets and mounting screws; Made for Cat 6a cabling, but backwards compatible with Cat 6, Cat 5e and Cat 5 cabling.

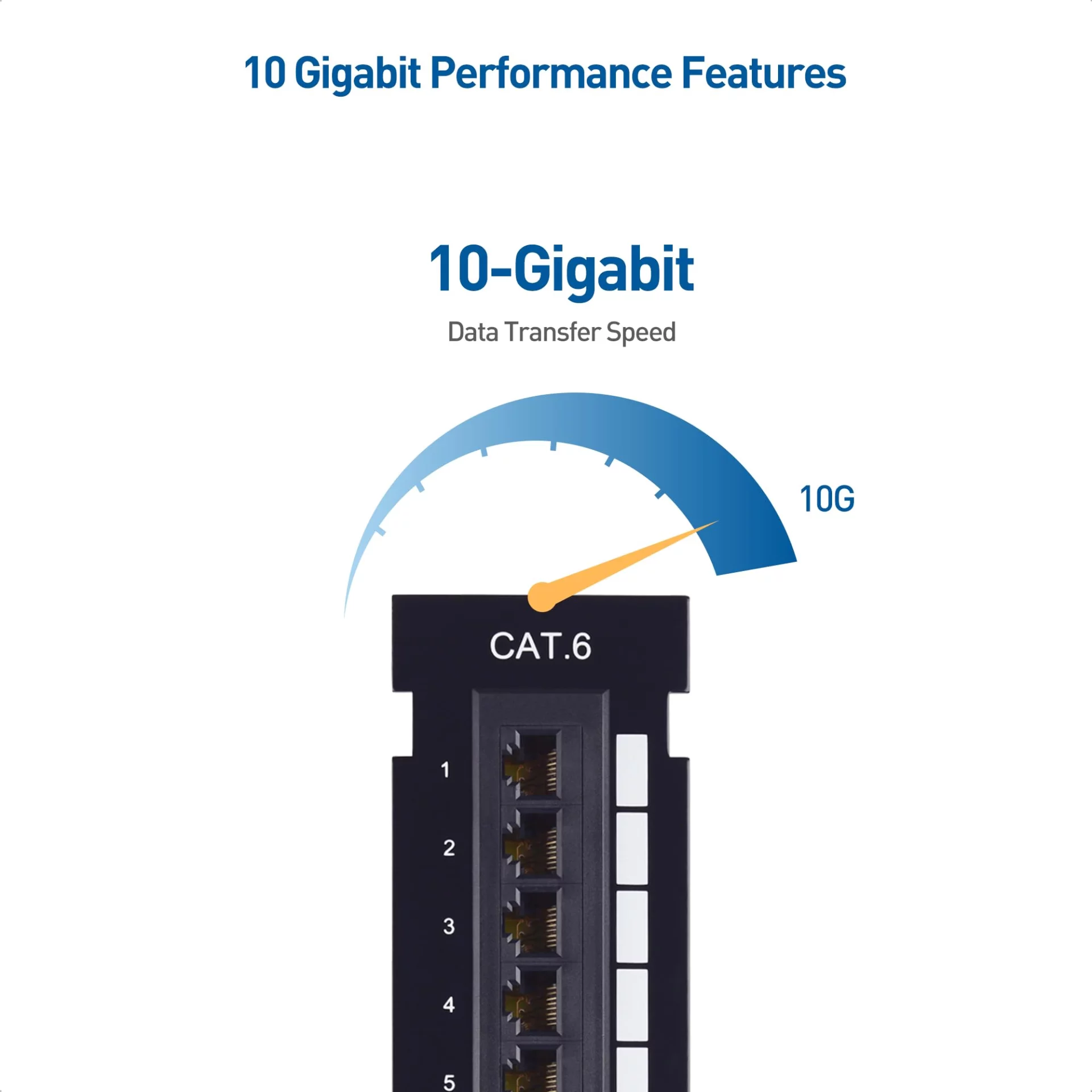

- 10 Gigabit Ethernet rated patch panel offers identical performance to a 19 inch rack sized 10 Gig network patch panel in a small form factor; 10 Gig rated network performance meets or exceeds TIA 568-C.2 while maintaining backwards compatibility; Dual IDC termination blocks hold the cable in a star configuration for better pair isolation and accommodate either 110 or Krone impact tools
- Soho with style for a professional looking structured cabling solution in a home or small office network; Pre-wire up to 12 locations and then Plug & play with standard RJ45 patch cables for connecting a LAN, video and audio streaming, IP camera surveillance and more; Label spaces on the front provide writeable areas for easy identification and a professional looking installation

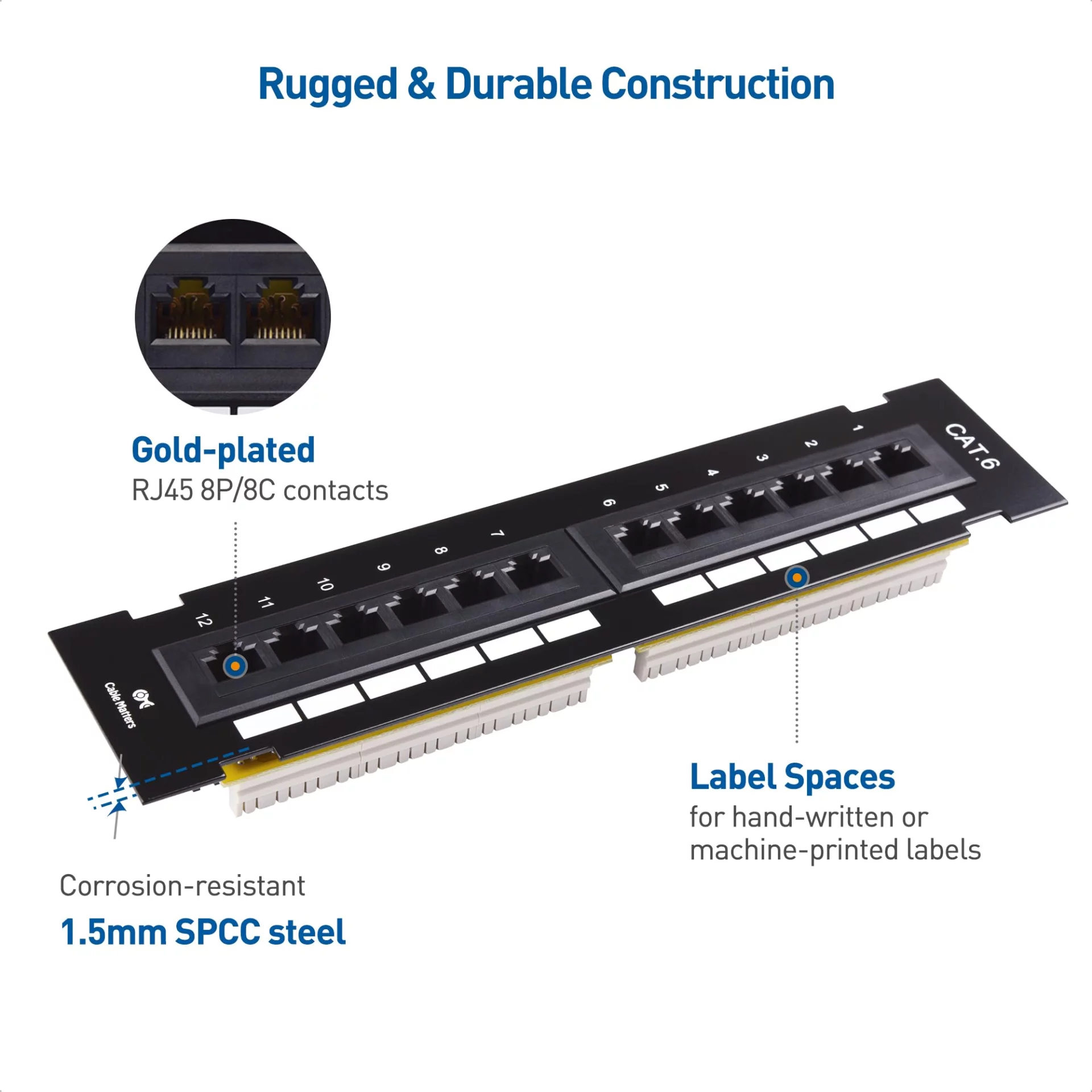

- Durable construction patch panel is built with a black-painted steel panel and gold-plated RJ45 contacts; Numbered portsare clearly labeled on the front and rear; Multiple cable tie slots integrated into the rear panel accommodate 6 inch zip ties for securing heavier cables
- Standards compliance with ANSI/TIA 568-C.2 for connecting hardware and color-coded IDC termination blocks, UL listed (E486099), 3P & ETL Verified, and RoHS and C E compliant; Supports both T568A and T568B wiring standards
