About the product

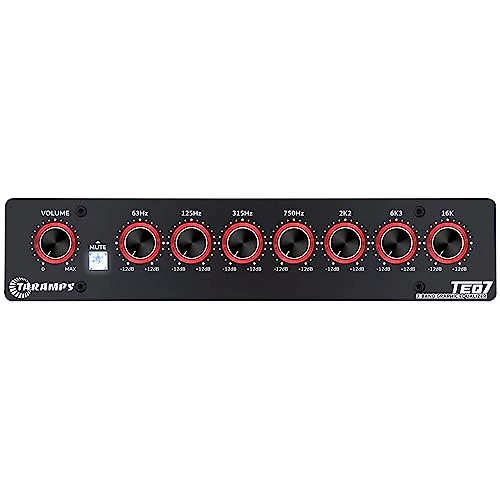

- The TEQ 7 is a stereo 7-band graphic equalizer designed to enhance your listening experience. With its compact design, the TEQ 7 easily fits into any 12V powered car audio system, providing a noticeable upgrade in quality. Its 7 bands of equalization have been carefully developed to guarantee precise and efficient control of audio frequencies, allowing you to adjust the sound according to your personal preferences.

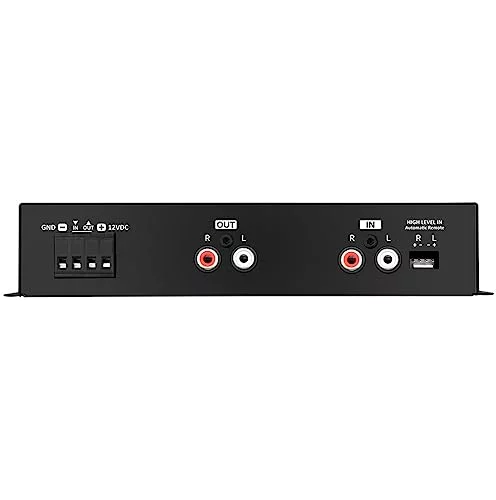

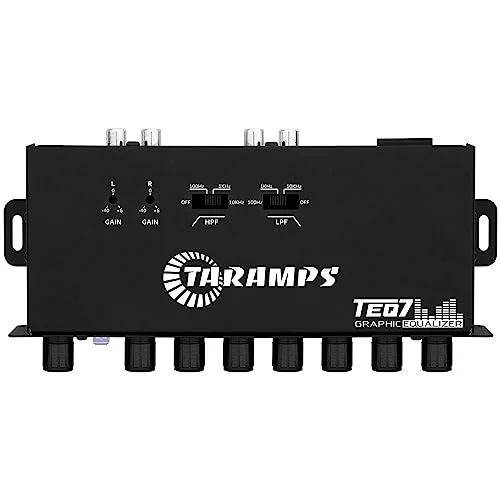

- In addition, the TEQ 7 has audio input via RCA and High Level audio input with automatic activation, HPF and LPF filters, and an Anti-Pop system, which prevents unwanted pops/noises” when turning the sound system on and off. It is available in three lighting options: Red, Blue or Yellow, so you can choose the one that best suits your vehicles aesthetics or your own style. Experience the power of the TEQ 7 and customize your sound experience.
- TECHNICAL INFORMATION
- * NUMBER OF CHANNELS : 2
- * INPUT IMPEDANCE : (RCA): 10K Ohms (WIRE): 56 Ohms
- " * OUTPUT IMPEDANCE : 100 Ohms
- * MAXIMUM INPUT LEVEL : (RCA): 28.28 Vpp (10 VRMS) (WIRE): 30.54 Vpp (10.8 VRMS)
- " * MAXIMUM OUTPUT LEVEL : 28.28 Vpp (10 VRMS)
- * FREQUENCY RESPONSE : 6Hz to 50KHz
- * TOTAL HARMONIC DISTORTION : 0.0001
- * SIGNAL TO NOISE RATIO : >100dB
- * CROSSTALK (SEPARATION BETWEEN CHANNELS) : >80dB/1KHz
- TECHNICAL INFORMATION
- * CUTOFF FREQUENCY : 100Hz, 1KHz and 10KHz (Selectable)
- * BUTTERWORTH FILTERS : -12dB/octave
- * ATTENUATION - GAIN : -12dB to +12dB
- * Q FACTOR : 1.414
- * FREQUENCY RANGE : 7-band Graphic equalizer * Frequencies: 63, 125, 315, 750, 2.2K, 6.3K, 16KHz
- " * POWER SUPPLY VOLTAGE (POWER) : 9 to 16VDC
- * WEIGHT : 1.1lb (0.5 Kg)
- ADDITIONAL INFORMATION
- * Number of output channels: 2
- * Overall gain adjustment: -40 to +6dB
- * Graphic equalizer, 7 bands: Frequencies: 63, 125, 315, 750, 2.2K, 6.3K, 16KHz
- * General MUTE function
- * Nominal consumption (12.6V): 0.380A" * WEIGHT : 1.1lb (0.5 Kg)
- * EAN : Yellow: 7898556849807 ( SKU : 001.864 / TEQ7YELLOW )
- * EAN : Red:7898556849784 ( SKU : 001.873 / TEQ7RED )
- * EAN : Blue: 7898556849791 ( SKU : 001.872 / TEQ7BLUE )
