About the product
- Connect GND to ground, VCC to 2.4-5VDC. For the best performance, use the "quietest" supply available (on an for Ar-duino, this would be the 3.3V supply).
- The audio waveform will come out of the OUT pin. The output will have a DC bias of VCC/2 so when its perfectly quiet, the voltage will be a steady VCC/2 volts (it is DC coupled). If the audio equipment you're using requires AC coupled audio, place a 100uF capacitor between the output pin and the input of your device. If you're connecting to an audio amplifier that has differential inputs or includes decoupling capacitors, the 100uF cap is not required.
- The output pin is not designed to drive speakers or anything but the smallest in-ear headphones- you'll need an audio amplifier (such as 3.7W stereo amp) if you want to connect the amp directly to speakers. If you're connecting to a microcontroller pin, you don't need an amplifier or decoupling capacitor - connect the OUT pin directly to the microcontroller ADC pin.
- For audio-reactive projects, we suggest using an FFT driver library which can take the audio input and 'translate' it into frequencies.

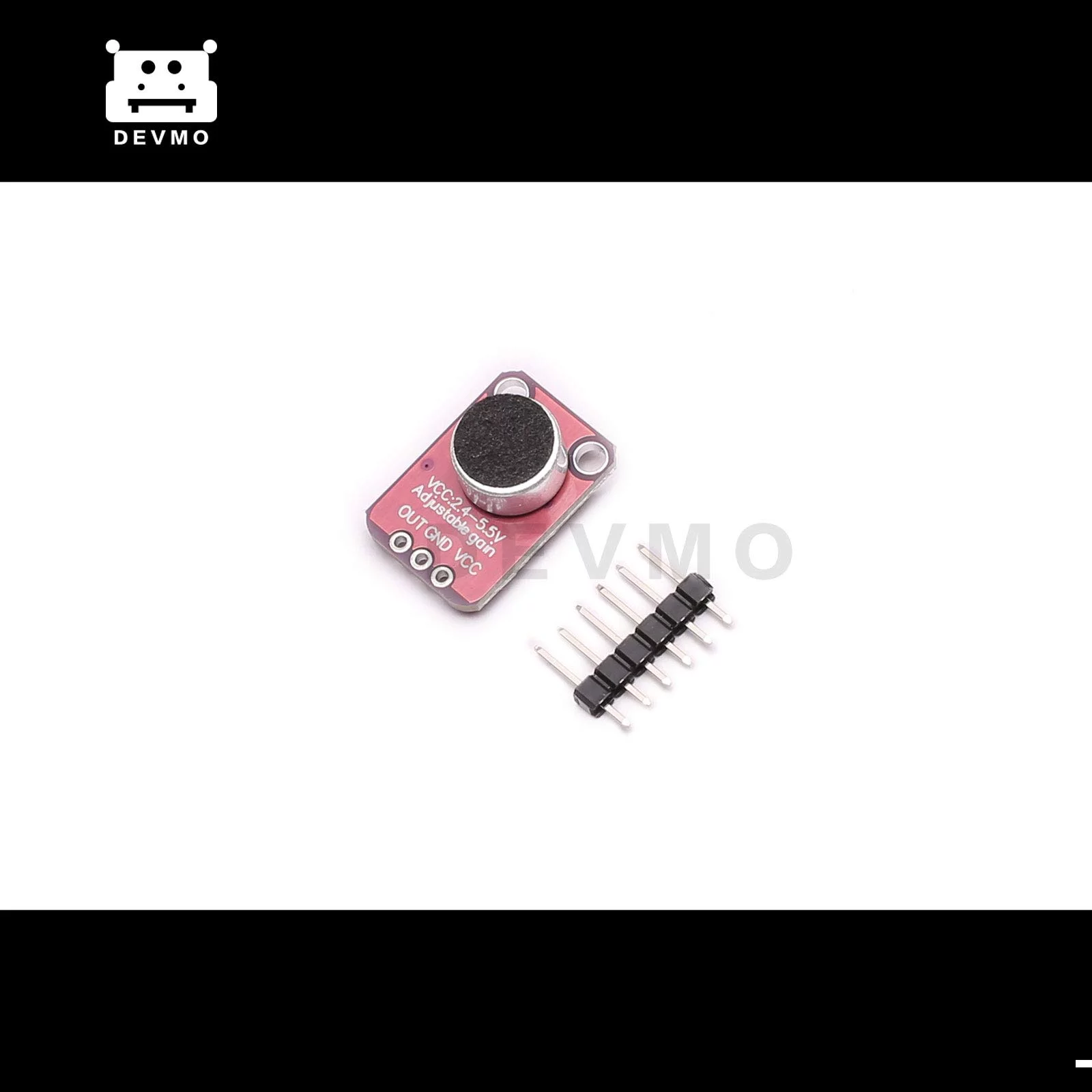

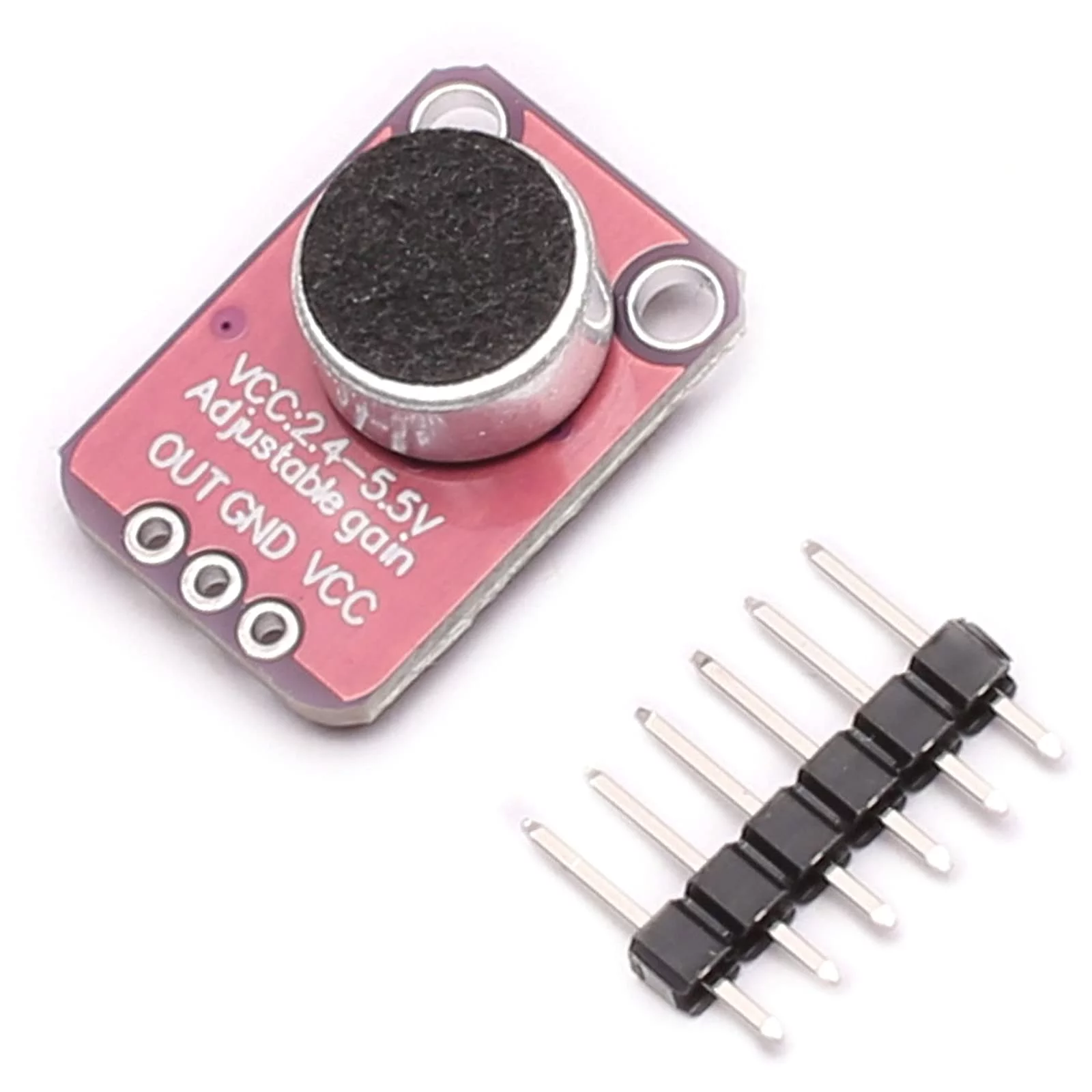

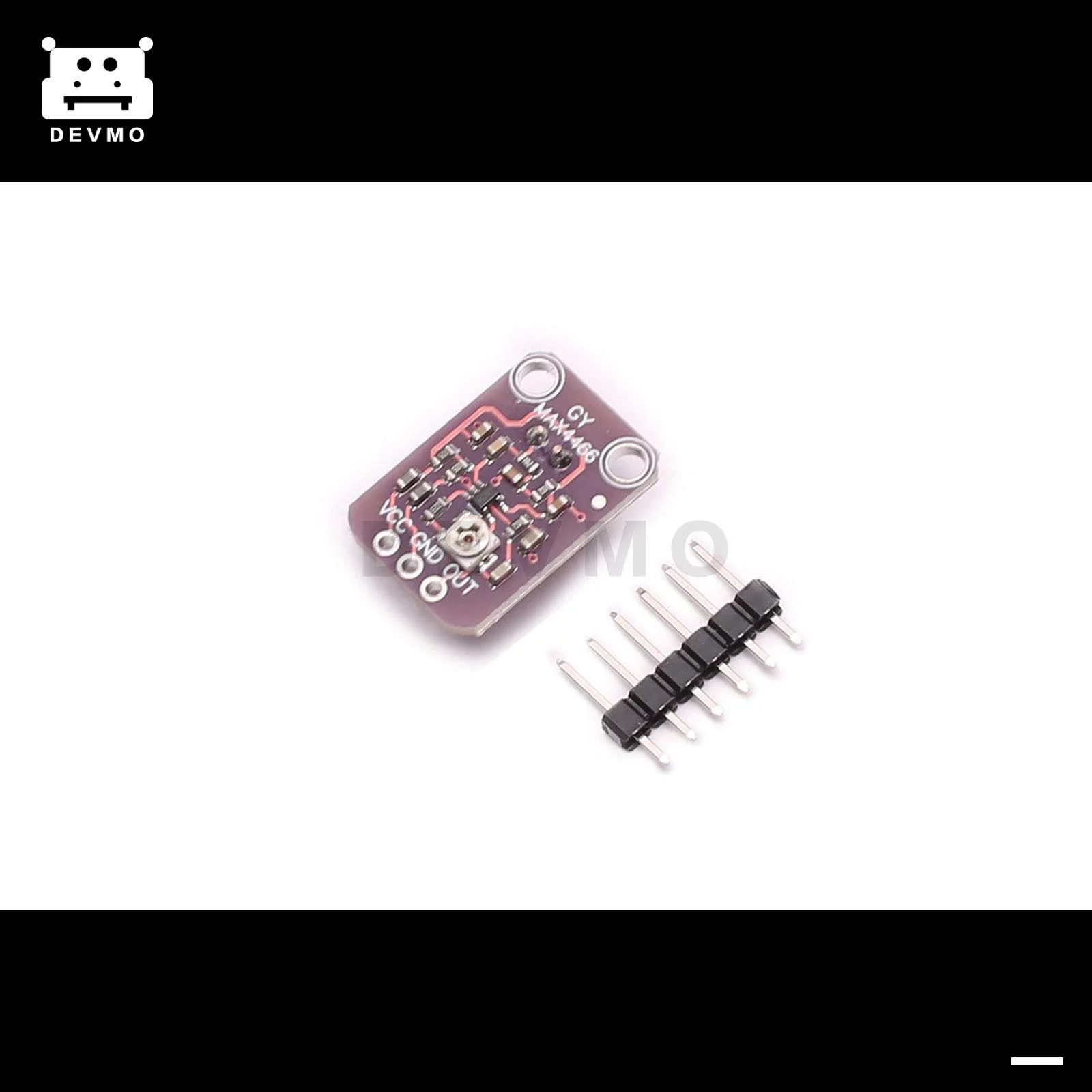

- GY-MAX4466 MAX4466 Electret Microphone Amplifier Module Adjustable Gain OUT GND VCC Amplifier Board 2.4-5V DC For Ar-duino
