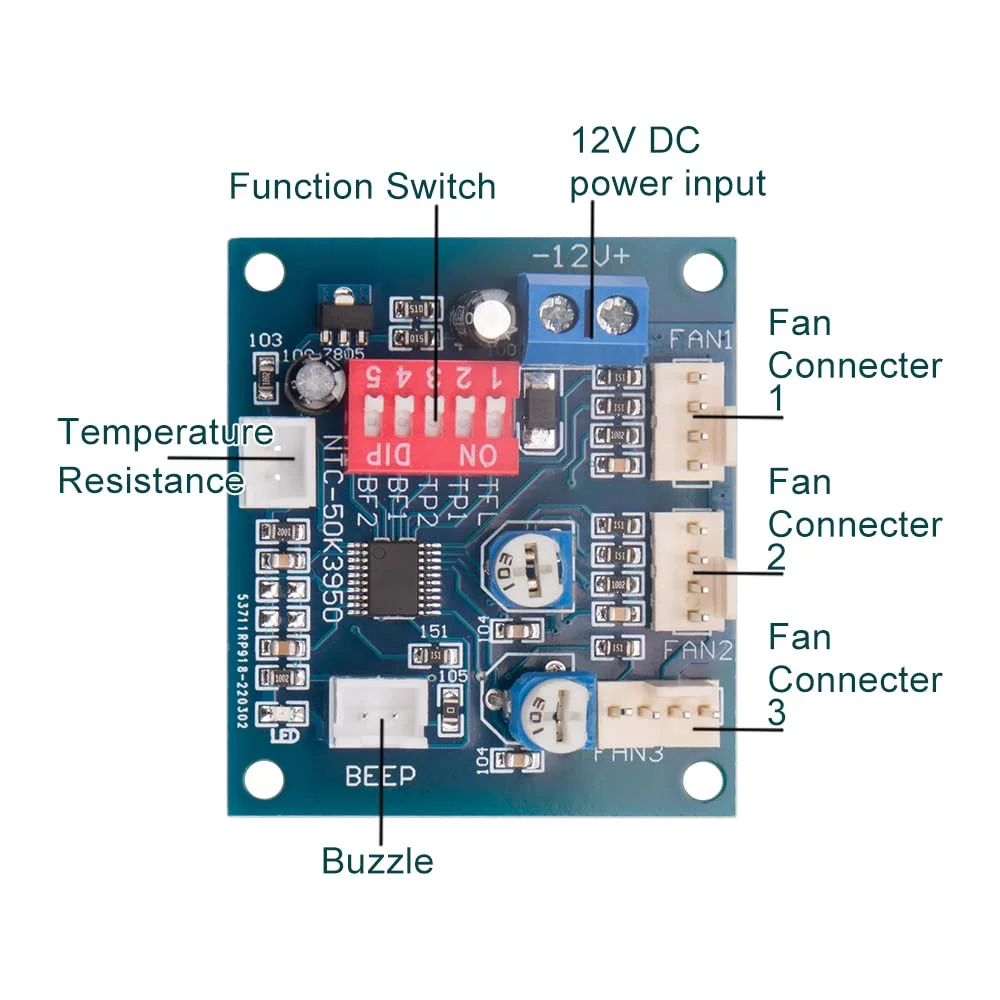

About the product
- Supports all internal 12V 5A fans, synchronous rectified output, high efficiency, no need for additional heat sinks even for high current operation.
- Multiple fans can be used in parallel (total current does not exceed 5A), support automatic temperature control and air cooling speed control, temperature control speed has four temperature zone settings, widely used.
- It can be turned on with the three-wire fan monitoring function (stall warning).

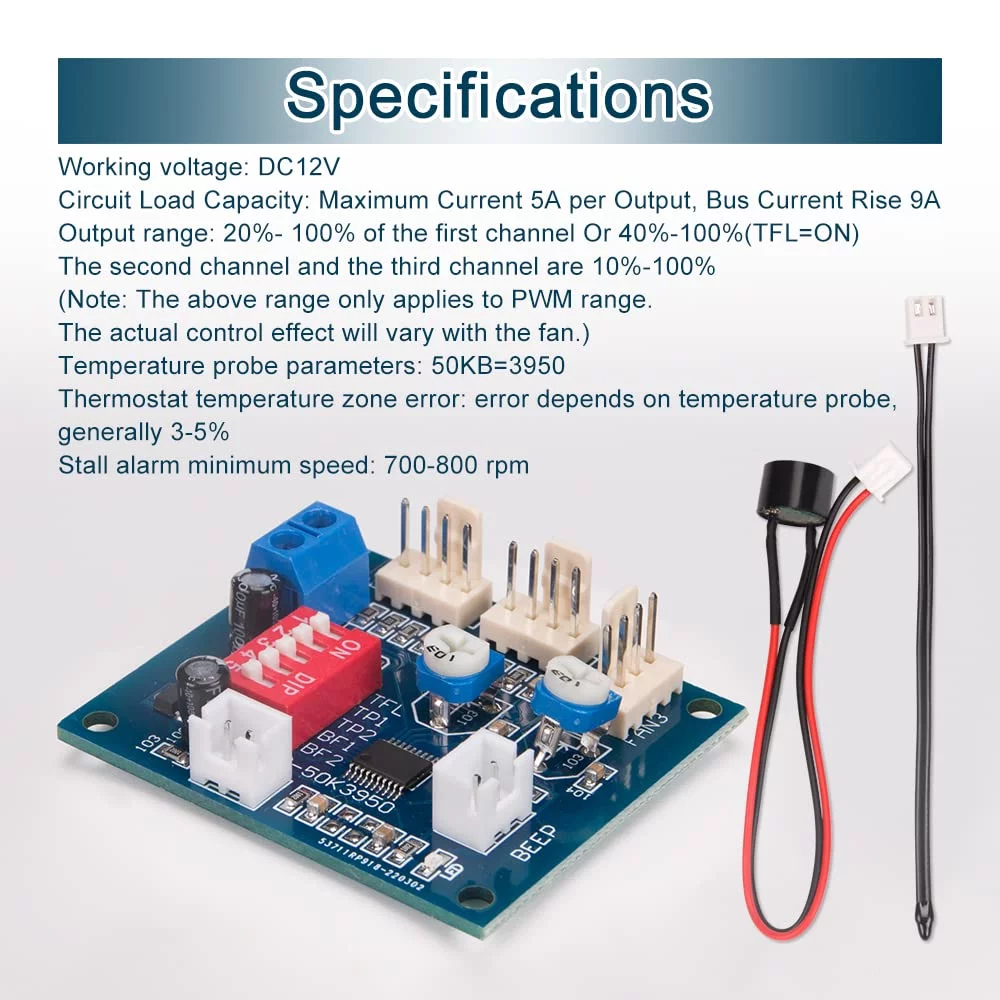

- Circuit load capacity: 5A for each output and 8A for bus current.
- Output range: 20%-100% for the first channel, or 40%-100% for the first channel (TFL = ON), 10%-100% for the second channel and the third channel. (Note: The above range is only applicable to the PWM range, the actual control effect will vary depending on the fan)
